Y09-310 AC-DC激光尘埃粒子计数器技术参数

品牌	孚夏	型号	Y09-310 AC-DC
注册证编号		备案号

Y09-310 AC-DC激光尘埃粒子计数器产品特点

用于测量洁净环境中单位体积内尘埃粒子数和粒径分布的仪器。它可广泛应用于为各省市药检所、血液中心、防疫站、疾控中心、质量监督所等权威机构、电子行业、制药车间、半导体、光学或精密机械加工。

Y09-310 AC-DC激光尘埃粒子计数器详细介绍

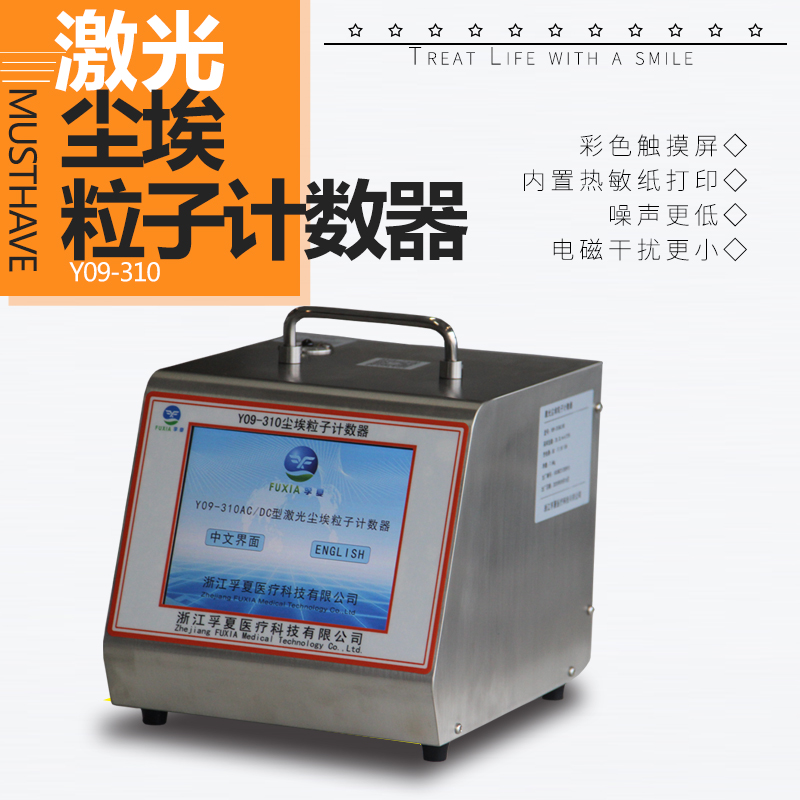

品名：交直流两用28.3L大流量尘埃粒子计数器

型号：Y09-310 AC-DC

　一、概述

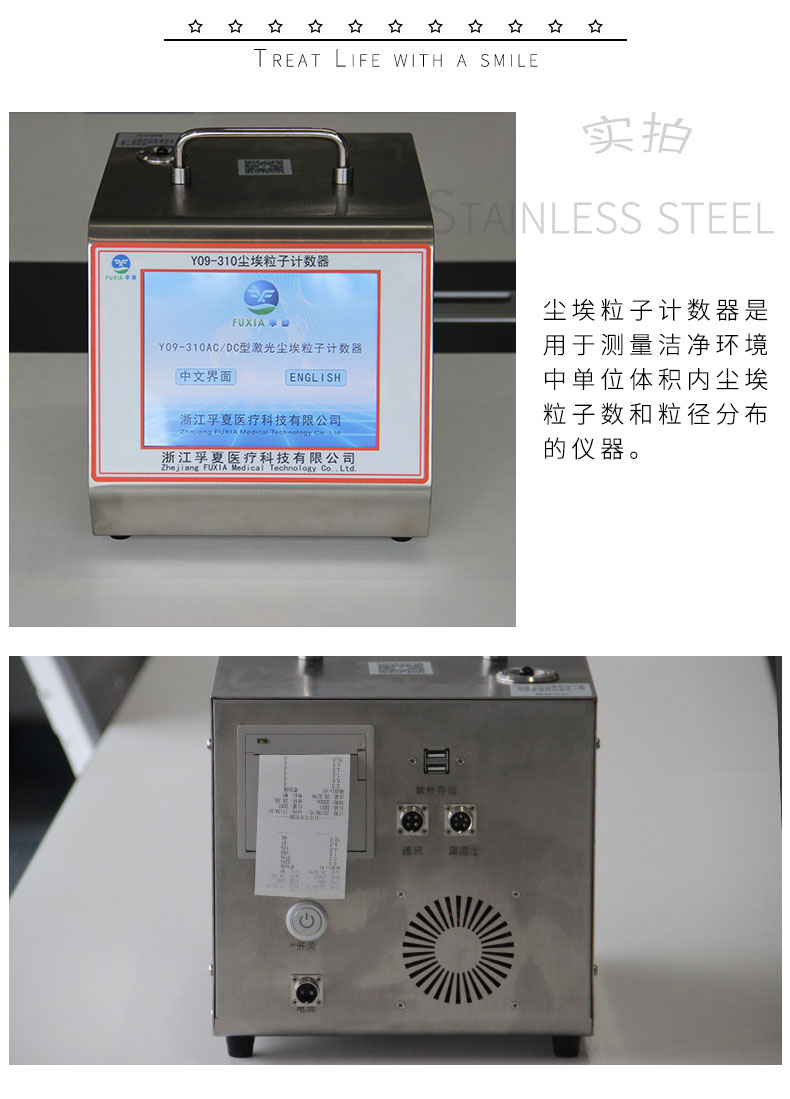

尘埃粒子计数器是用于测量洁净环境中单位体积内尘埃粒子数和粒径分布的仪器。它可广泛应用于为各省市药检所、血液中心、防疫站、疾控中心、质量监督所等权威机构、电子行业、制药车间、半导体、光学或精密机械加工、塑胶、喷漆、、环保、检验所等生产企业和科研部门。符合国家计量总局颁布的JJF1190-2008《尘埃粒子计数器校准规范》规程的技术要求，整机功能采用微电脑控制处理，可直接打印检测结果。

　　该产品是由本厂与南京理工大学联合开发研制的新一代高端尘埃粒子计数器。控制方式由老式的按键式控制升级为触摸屏控制， 8寸彩色液晶触摸屏(显示尺寸162mm宽*121mm高，显示比例4:3)，超大的视觉界面使得操作更为简便直观。产品采用进口德国托马斯气泵，噪声更低，电磁干扰更小;供电采用大容量锂电池与直流电源适配器转换供电，外形设计大气简洁，体积小，重量轻,使用方便，全不锈外壳更能符合GMP的要求。

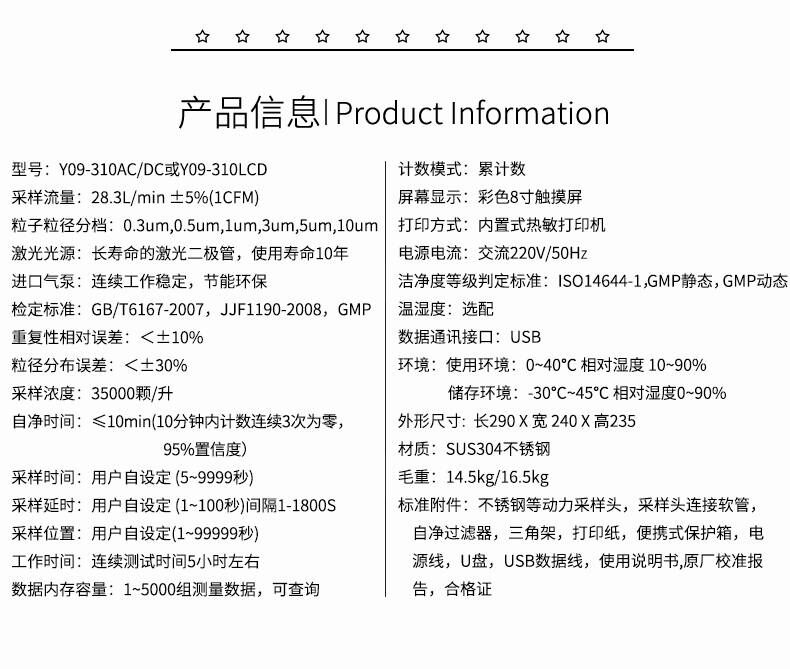

　　二、技术指标：

型号	Y09-310 AC-DC型激光尘埃粒子计数器
采样流量	28.3L/min ±5%
粒子粒径分档	0.3um,0.5um,1um,3um,5um,10um
激光光源	长寿命的激光二极管，10年
进口气泵	连续工作稳定，节能环保
检定标准	GB/T6167-2007，JJF1190-2008
重复性相对误差	＜±10%
粒径分布误差	＜±30%
采样浓度	35000颗/升
自净时间	≤10min （10分钟内计数连续3次为零，95%置信度）
采样时间	用户自设定 (5∽1800秒)
采样延时	用户自设定 (1∽100秒)间隔1-1800S
UCL采样次数	2∽50
UCL采样点数(位置)	2∽50
数据内存容量	1∽5000组测量数据，可查询
计数模式	累计数
屏幕显示	彩色8寸触摸屏

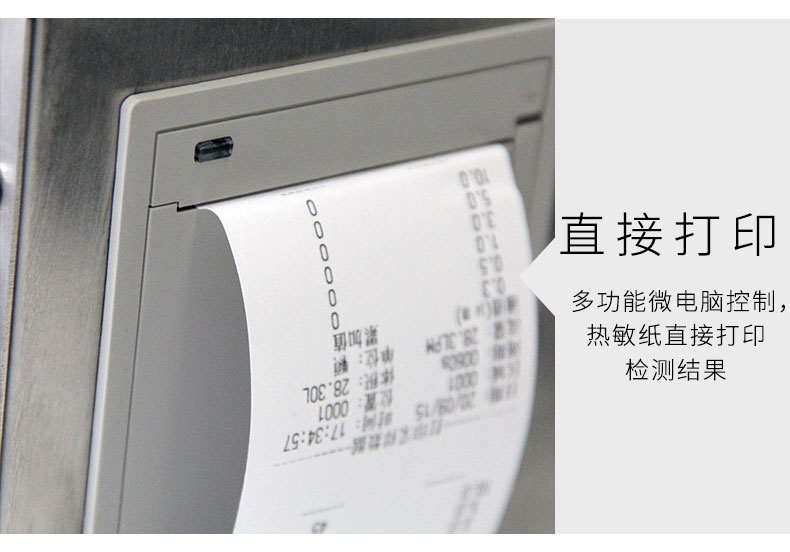

打印方式	内置式热敏打印机
电源	交流220V/50Hz, 直流16.8V 18Ah
洁净度等级判定标准	ISO14644-1， GMP静态，GMP动态
温湿度	选配

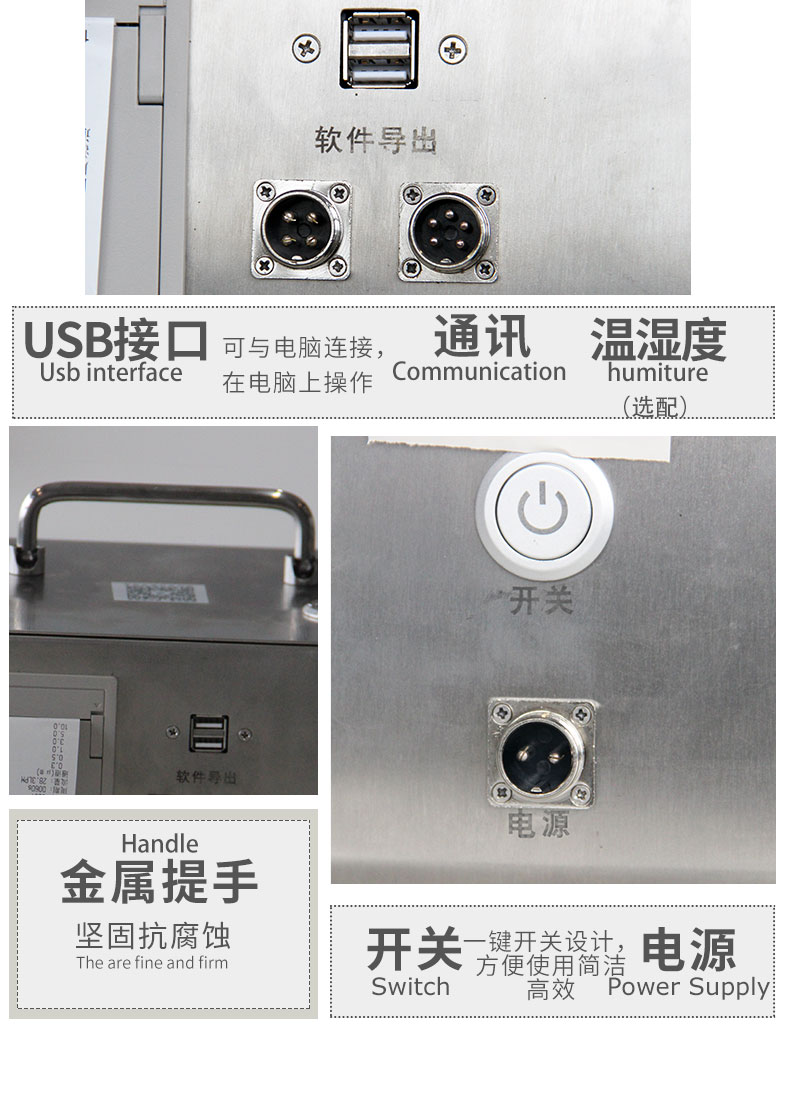

数据通讯接口	USB
环境	使用环境：0∽40℃ 相对湿度 10∽90%
环境标准附件	储存环境：-30℃∽45℃ 相对湿度0∽90%
环境标准附件外形尺寸	等动力采样头，采样头连接软管(内径6mm)自净过滤器，三角架，打印纸，便携式保护箱，电源线，U盘，USB数据线，使用说明书,原厂校准报告，合格证
环境标准附件外形尺寸	长290X 宽 240 X 高235
材质	SUS304不锈钢
重量（不含包装）	7Kg

　　三、使用条件：

　　1、洁净室环境，周围无强磁场干扰;请勿长时间在大气中作业，防止传感器污染;

　　2、电源：交流220V/50Hz, 直流16.8V 18Ah。
