单人单面医用型带医疗器械注册证超净工作台技术参数

品牌	孚夏	型号	SW-CJ-1FD
注册证编号		备案号

单人单面医用型带医疗器械注册证超净工作台详细介绍

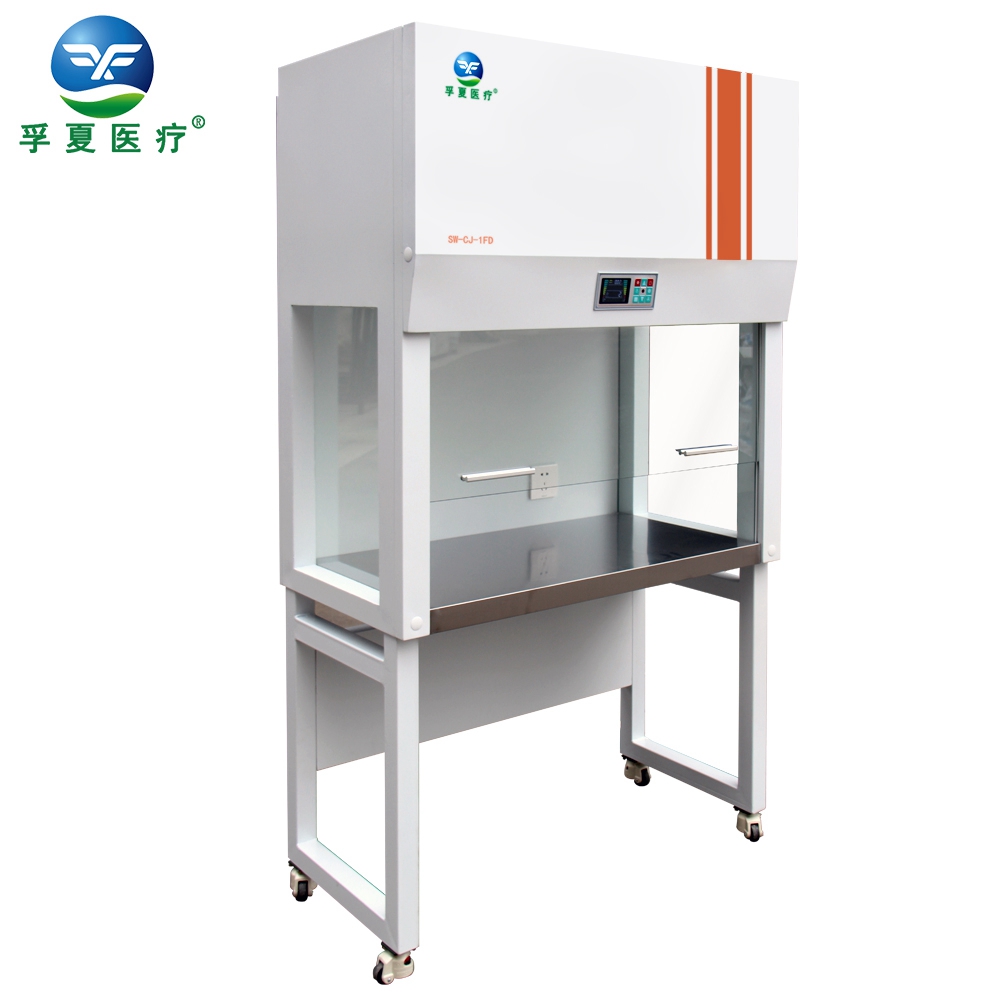

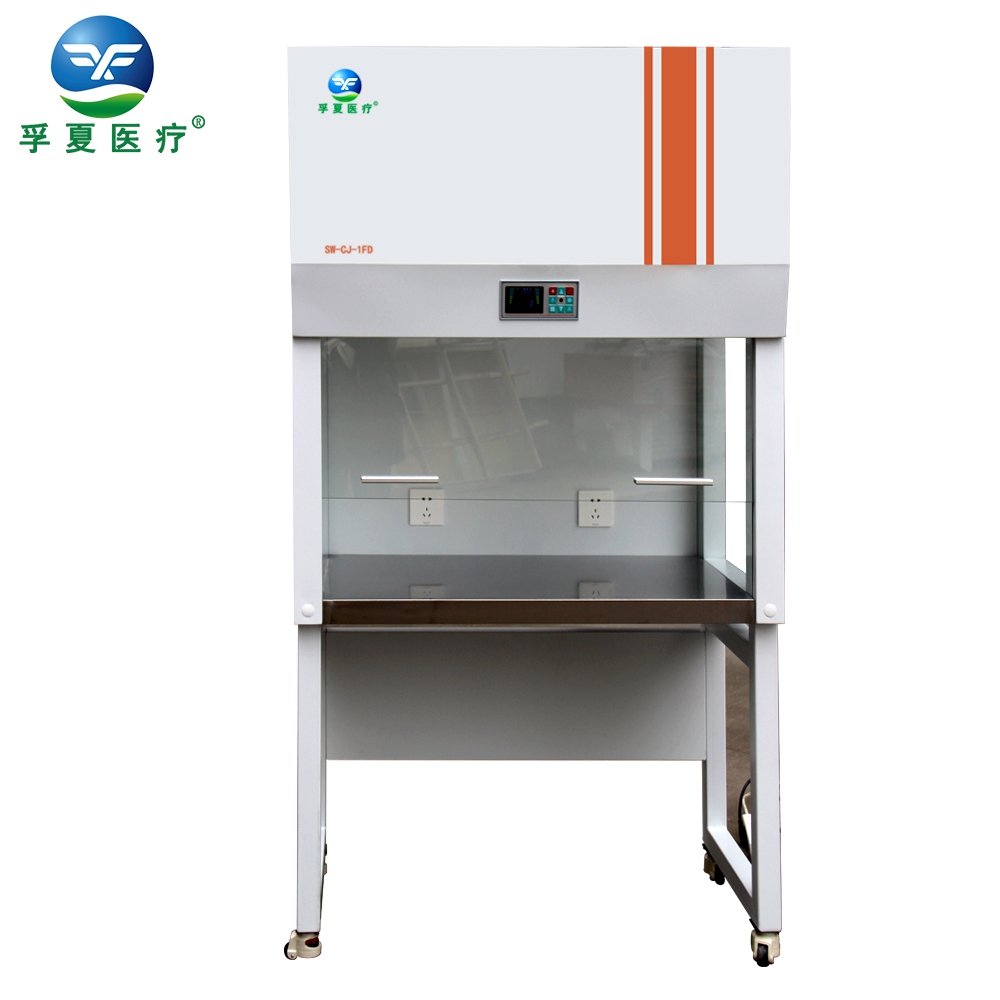

孚夏单人单面医用型带医疗器械注册证超净工作台

产品特征

1、符合中国CFDA的YY/T 1539-2017《医用洁净工作台》的要求，具有II类医疗器械注册证，注册证号：浙械注准20232220042

2、悬挂式升降系统玻璃门，操作方便灵活，拉门升降自如，可任意定位

3、外壳采用冷轧板喷塑焊接，工作台面为SUS304拉丝不锈钢，耐腐蚀、易清洗

4、照明灯和紫外灯安全互锁，紫外灯与移门安全互锁，移门与风机安全互锁，风速0.2-0.5m/s任意可调，可紫外灯预约定时

5、数显式制界面，更具人性化设计，可实时检测并显示下降气流流速，监测风机运行及操作区安全状态、灯管照明状态及过滤器使用时效，并有过滤器失效报警功能

6、三面可视窗设计，采光效果更佳，视野更广阔

7、垂直准闭合式台面，操作室下降流气幕的形成，可有效防止外部气体投入和操作区洁净

8、配置有HEPA高效空气过滤器，设有初效过滤器进行初步过滤，可有效延长高效过滤器使用寿命

9、可加配遥控器远程遥控控制，可加配拓展485通讯，可加配DOP检测口

技术参数：

型号参数		SW-CJ-1FD
洁净等级		ISO 5级, 100级（美联邦209E）
菌落数		≤0.5个/皿·时（Φ90mm培养平皿）
平均风速		0.2-0.5m/s（可调）
噪音		≤62dB（A）
振动半峰值		≤5μM（x、y、z方向）
照度		≥300Lx
电源		AC单相220V/50Hz
功率		350W
重量		90kg
工作区尺寸	W1×D1×H1	940×540×545
外型尺寸	W×D×H	1040×615×1770
适用人数		单人/单面
高效过滤器规格及数量		900×440×70×①
荧光灯/紫外灯规格及数量		12W×①/20W×①
